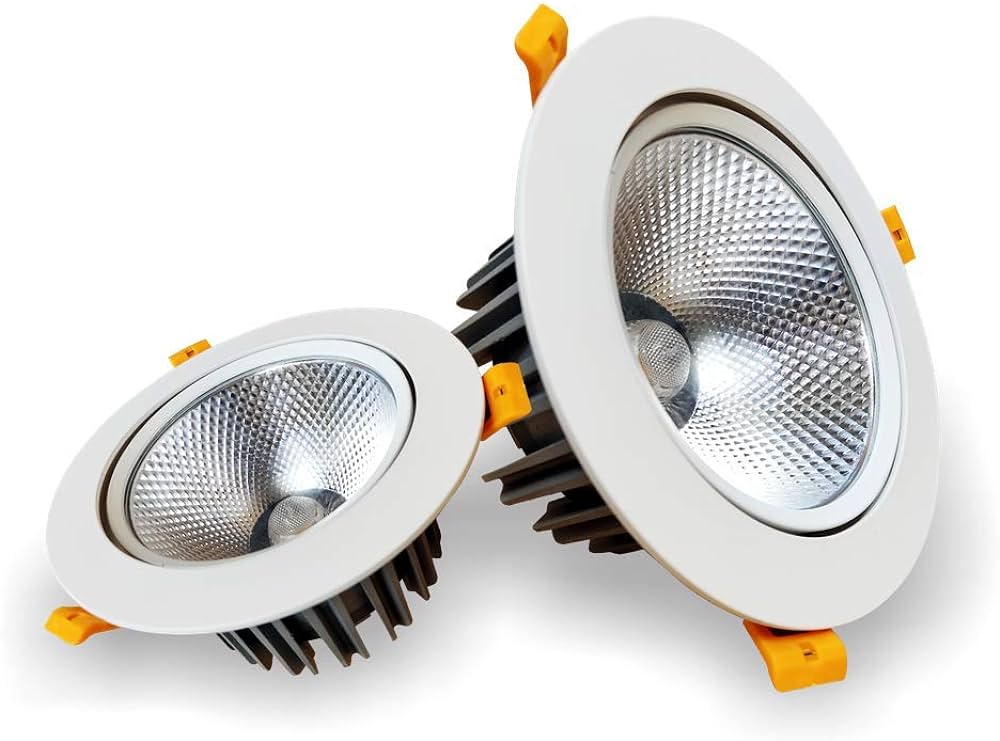

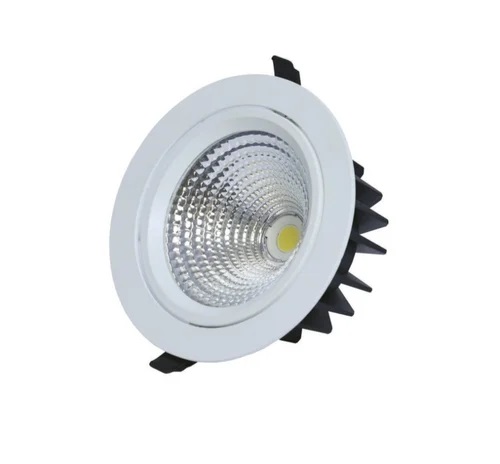

COB SPOT LIGHT Flat Model (Square / Round Movable Type)

Code: V-122
Wattage: 4W
Design: Round / Square
Outer Size (mm): 68 X 68
Cut Out Size (mm): 58 X 58
Height (mm): 35

Code: V-123
Wattage: 7W
Design: Round / Square
Outer Size (mm): 88 X 88
Cut Out Size (mm): 70 X 70
Height (mm): 35

Code: V-124
Wattage: 12W / 15W
Design: Round
Outer Size (mm): 120 X 120
Cut Out Size (mm): 105 X 105
Height (mm): 35

Code: V-125
Wattage: 15W / 20W / 25W
Design: Round
Outer Size (mm): 145 X 145
Cut Out Size (mm): 135 X 135
Height (mm): 75

Code: V-126
Wattage: 30W / 36W
Design: Round
Outer Size (mm): 160 X 160
Cut Out Size (mm): 145 X 145
Height (mm): 90

Code: V-127
Wattage: 40W / 50W
Design: Round
Outer Size (mm): 190 X 190
Cut Out Size (mm): 175 X 175
Height (mm): 100

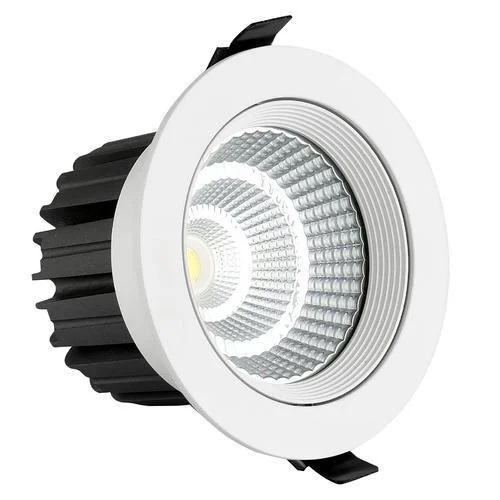

VERO COB SPOT LIGHT Deep Model (Round Fix Type)

Led Make : Cree / Bridgelux
Driver : Philips / Fulham
Colour Temp : 3000 / 4000 / 6500 k
Lumens Efficiency : 130Lm / W
Led Beam Angle : 24 / 36 / 60
Body Colour : White / Black
Heatsink Colour : Grey / Black
Material : Aluminium Die Casting
Reflector : Shinland / Darkoo

Code: V-128
Wattage: 25W
Design: Round
Outer Size (mm): 140 X 140
Cut Out Size (mm): 120 X 120 Height (mm): 90

Code: V-129
Wattage: 30W
Design: Round
Outer Size (mm): 165 X 165
Cut Out Size (mm): 145 X 145 Height (mm): 110

Code: V-130
Wattage: 50W
Design: Round
Outer Size (mm): 200 X 200
Cut Out Size (mm): 175 X 175 Height (mm): 110

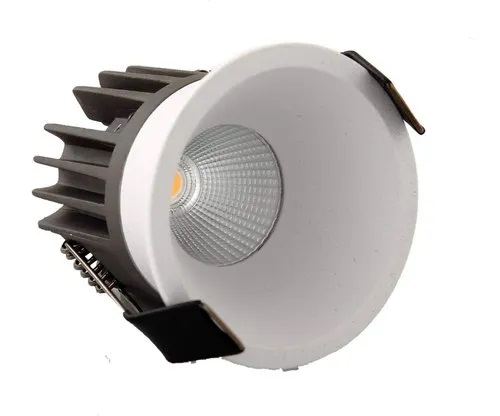

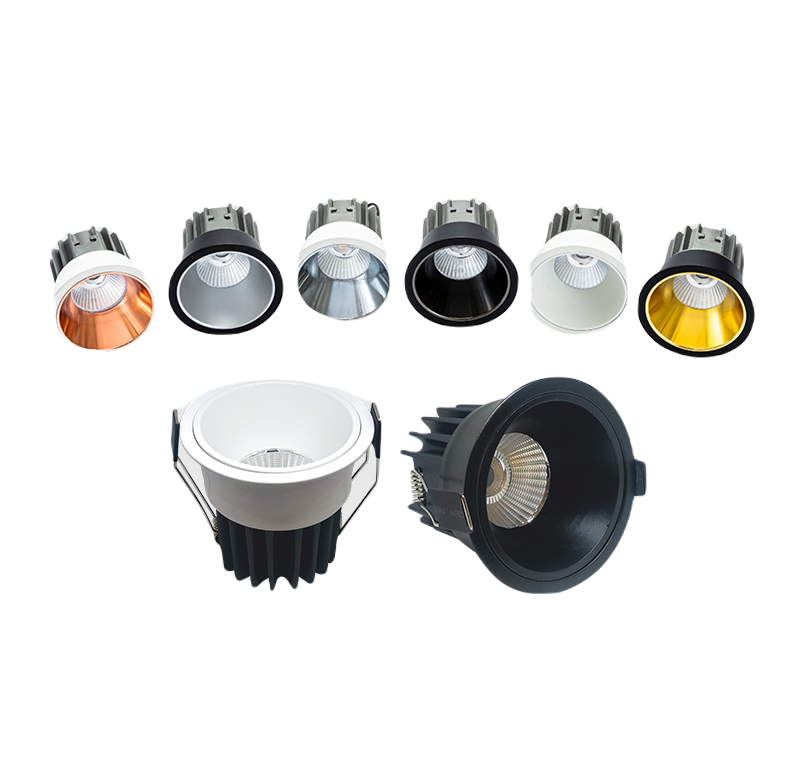

DELTA COB SPOT LIGHT Round Concealed Type

Led Make : Cree / Bridgelux
Driver : Philips / Fulham
Colour Temp : 3000 / 4000 / 6500 k
Lumens Efficiency : 130Lm / W
Led Beam Angle : 24 / 36 / 60
Body Colour : White / Black
Heatsink Colour : Grey / Black
Material : Aluminium Die Casting
Reflector : Shinland / Darkoo

Code: V-131
Wattage: 4 W
Design: Round
Outer Size (mm): 70 X 70
Cut Out Size (mm): 60 X 60 Height (mm): 65

Code: V-132
Wattage: 7 W
Design: Round
Outer Size (mm): 75 X 75
Cut Out Size (mm): 65 X 65 Height (mm): 70

Code: V-133
Wattage: 12 W
Design: Round
Outer Size (mm): 83 X 83
Cut Out Size (mm): 76 X 76 Height (mm): 75

Code: V-134
Wattage: 18 W
Design: Round
Outer Size (mm): 95 X 95
Cut Out Size (mm): 85 X 85 Height (mm): 85

Code: V-135
Wattage: 30 W
Design: Round
Outer Size (mm): 128 X 128
Cut Out Size (mm): 115 X 115 Height (mm): 115

Code: V-141
Wattage: 15 W
Design: Round
Outer Size (mm): 90 X 90
Cut Out Size (mm): 80 X 80 Height (mm): 100

Code: V-142
Wattage: 15 W
Design: Round
Outer Size (mm): 83 X 83
Cut Out Size (mm): 75 X 75 Height (mm): 100

Code: V-143
Wattage: 7 W
Design: Round
Outer Size (mm): 75 X 75
Cut Out Size (mm): 65 X 65 Height (mm): 70

Code: V-144
Wattage: 12 W
Design: Round
Outer Size (mm): 83 X 83
Cut Out Size (mm): 76 X 76 Height (mm): 75

Code: V-145
Wattage: 18 W
Design: Round
Outer Size (mm): 95 X 95
Cut Out Size (mm): 85 X 85 Height (mm): 85

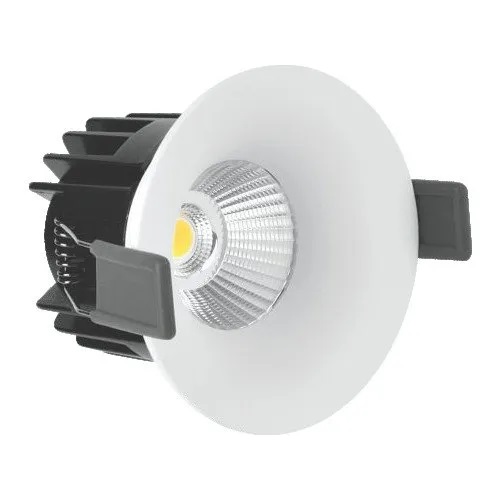

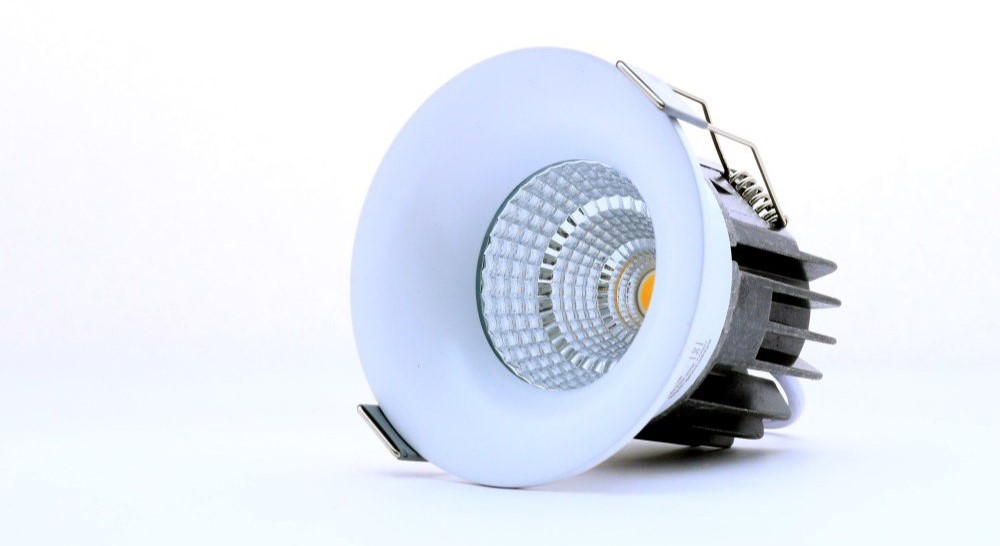

CURVE COB SPOT LIGHT Round Concealed Type

Code: V-136
Wattage: 4 W
Design: Round
Outer Size (mm): 70 X 70
Cut Out Size (mm): 60 X 60
Height (mm): 65

Code: V-137
Wattage: 7 W
Design: Round
Outer Size (mm): 75 X 75
Cut Out Size (mm): 65 X 65
Height (mm): 70

Code: V-138
Wattage: 12 W
Design: Round
Outer Size (mm): 83 X 83
Cut Out Size (mm): 76 X 76
Height (mm): 75

Code: V-139
Wattage: 18 W
Design: Round
Outer Size (mm): 95 X 95
Cut Out Size (mm): 85 X 85
Height (mm): 85

Code: V-140
Wattage: 30 W
Design: Round
Outer Size (mm): 128 X 128
Cut Out Size (mm): 115 X 115
Height (mm): 115
